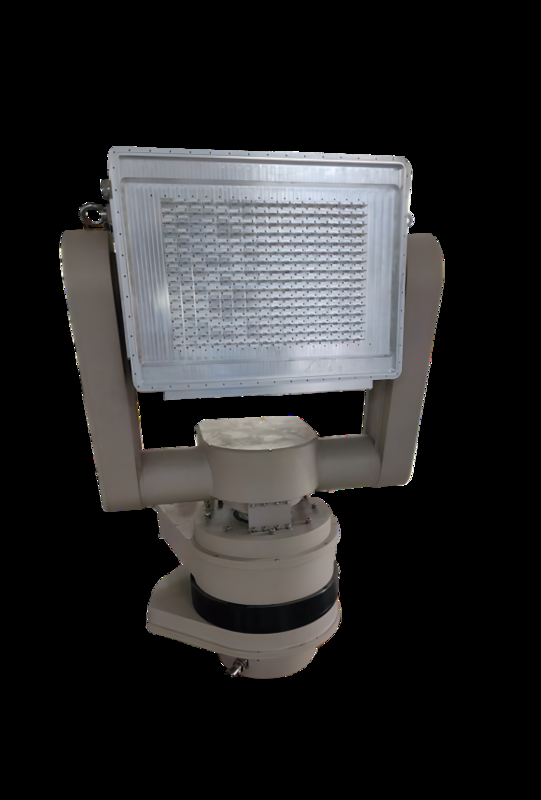

25km multi-target full airspace coverage low altitude surveillance radar

Name: 25km multi-target full airspace coverage low altitude surveillance radar
Brand: Chongqing Leikan Technology Co., Ltd
SKU: LKXR-XD101
Availability: InStock

Ürün detayları:

Marka adı:	Lei Kan
Model numarası:	LKXR-XD101

Ayrıntılı Bilgiler

Marka adı:

Lei Kan

Model numarası:

LKXR-XD101

Uzun menzilli tespit:

≥25 km （rcs = 1 m²）/ ≥8 km （0.01 m²）

Hafif hareketlilik:

55 kg'dan az, araca monte veya sabit dağıtım olabilir

Hızlı Çeviri:

Kendi başınıza kurmak 10 dakika sürer

Tam Hava Kapsamı:

Esnek kör dolgu için elektrik taraması ve makine taramasını karıştırın

Vurgulamak:

High Light

Vurgulamak:

25km low altitude surveillance radar

multi-target low altitude radar

full airspace coverage radar

Ticaret Bilgisi

Min sipariş miktarı:

Ödeme koşulları:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Ürün Açıklaması

Ⅰ. Overview

The X-band 2D AESA radar is a 2D active phased array (AESA) three-coordinate radar with a full solid-state, fully phased and modular design. It can simultaneously complete high-speed target detection, tracking and positioning, and is suitable for key area air defense, border monitoring and battlefield reconnaissance missions.

Ⅱ. Highlights

3D Positioning: Azimuth/Pitch electric scanning + 360° mechanical scanning, no blind spots in airspace
Multi-target: ≥200 real-time flight paths, supports high-speed targets 0.8–100 m/s
Long-range detection: ≥25 km (RCS=1 m²) / ≥8 km (0.01 m²)
Lightweight mobility: ≤55 kg, vehicle-mounted or fixed deployment
High reliability: fully solid-state, long MTBF, minimal maintenance required.

Ⅲ. Specifications

Parameter	Value
Radar type	2-D AESA
Frequency band	X-band
Scan coverage	e-scan: az ±15.5° el ±30°
Scan coverage	m-scan: az 0-360° el 0-90°
Antenna speed	≤10 rpm
Detection range	≥8 km (0.01 m²) / 15.5 km (0.1 m²) / 25 km (1 m²)
Blind range	240 m
Range res./accuracy	15 m / ≤20 m
Azimuth res./accuracy	≥5° / ≤0.8°
Elevation res./acc.	≥9° / ≤0.8°
Radial velocity	0.8–100 m/s
Max tracks	≥200
Transmit power	256 W
Size / Weight	≤686×411×145 mm / ≤55 kg

Ⅳ. Features

Full air coverage: electric sweeping and machine sweeping mixed, flexible blind spot suppression.
Strong clutter suppression: built-in multiple anti-clutter algorithms, suitable for urban and mountain areas.
Rapid deployment: modular structure, single person can complete the setup in 10 minutes.
Low power consumption: DC 28V/48V power supply, also can be driven by field batteries

V. Company Style

25km multi-target full airspace coverage low altitude surveillance radar 0

Ⅵ.Corporate Events

25km multi-target full airspace coverage low altitude surveillance radar 1

25km multi-target full airspace coverage low altitude surveillance radar 3
