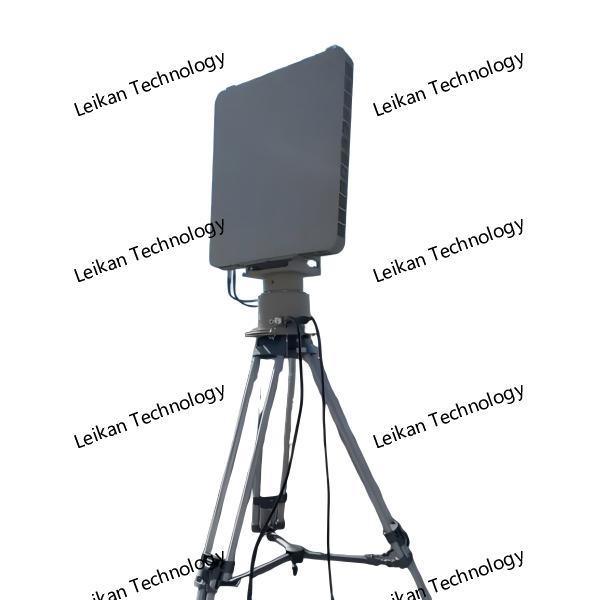

Ⅰ. Product Overview
The radar adopts azimuth mechanical scanning and elevation digital beamforming system, which can continuously detect and track moving targets in the area 24/7. It has the advantages of high detection sensitivity, low false alarm rate, and high accuracy.
Ⅱ. Product selling points
1. The detection radius for elf drones is ≥ 5km, for personnel it is ≥ 8km, for vehicles and ships it is ≥ 10km, with an azimuth coverage range of 360 ° and an elevation coverage range of 35 °. The detection performance is not affected by climate and lighting;
2. It can track more than 150 moving targets within the field of view, output real-time information such as target distance, speed, orientation, altitude, type, etc., and achieve suspicious target positioning and warning functions;
3. Shielding and warning areas can be set up to achieve target boundary alarm, alarm log recording, and playback;
4. Support radar photoelectric linkage, guide high-definition cameras to track, capture, and record targets in video;
5. Good compatibility and scalability, easy to integrate with other platforms, supporting multi device networking.
Ⅲ. Product Specifications
|
Parameter
|
Value
|
|
Frequency
|
X-band 9.8–10 GHz
|
|
Radar type
|
Azimuth mechanical + Elevation DBF
|
|
Coverage
|
Azimuth 360°
Elevation −5°–40°
|
|
Detection range
|
≥5 km (quadcopter) / ≥8 km (person) / ≥10 km (Vehicles and ships)
|
|
Blind zone
|
≤50 m
|
|
Range/Angle acc.
|
≤5 m (RMS) / Az & El ≤0.4°
|
|
Max tracks
|
≥200
|
|
Radial velocity
|
1–150 m/s
|
|
Antenna speed
|
30 rpm (180°/s) upgradeable 60 rpm
|
|
Power consumption
|
≤220 W
|
|
Weight
|
≤30 kg
|
|
Size
|
595×500×85 mm
|
|
Protection
|
IP65 (main unit IP67)
|
Ⅳ. Product Features
1. High data rate and strong tracking ability
2. Low false alarm probability
3. Wide detection range and high accuracy
4. High cost-effectiveness, easy to operate
Ⅴ. Usage scenarios
